Small Waste Paper Horizontal Baler Machine
A compact horizontal baler for waste paper designed for shops, warehouses, recyclers and print houses that need clean, dense bales with low labour. The machine feeds from a conveyor or manual hopper, compresses in a horizontal chamber, and ejects tidy bales that are easy to stack, strap and transport. Choose this category when vertical balers are too slow and fully-automatic lines are overkill—small horizontals deliver the sweet spot of speed, footprint and cost.
Working Principle & Process
Material enters the horizontal chamber via hopper/conveyor. A hydraulic ram compacts the waste against an adjustable counter-pressure gate. Once density is reached, the cycle pauses for strapping (manual or semiautomatic), the bale is ejected, and the chamber resets. Consistent bale density is achieved by pressure sensors, stroke control and interlocked gates for safe operation.
Suitable Variants in Small Horizontal Balers
- Manual-Tie Horizontal – Cost-effective small unit with 2–4 straps per bale; ideal for low to medium volumes.
- Semi-Automatic Horizontal – Hydraulic door & eject, operator ties; faster cycles for steady inflow.

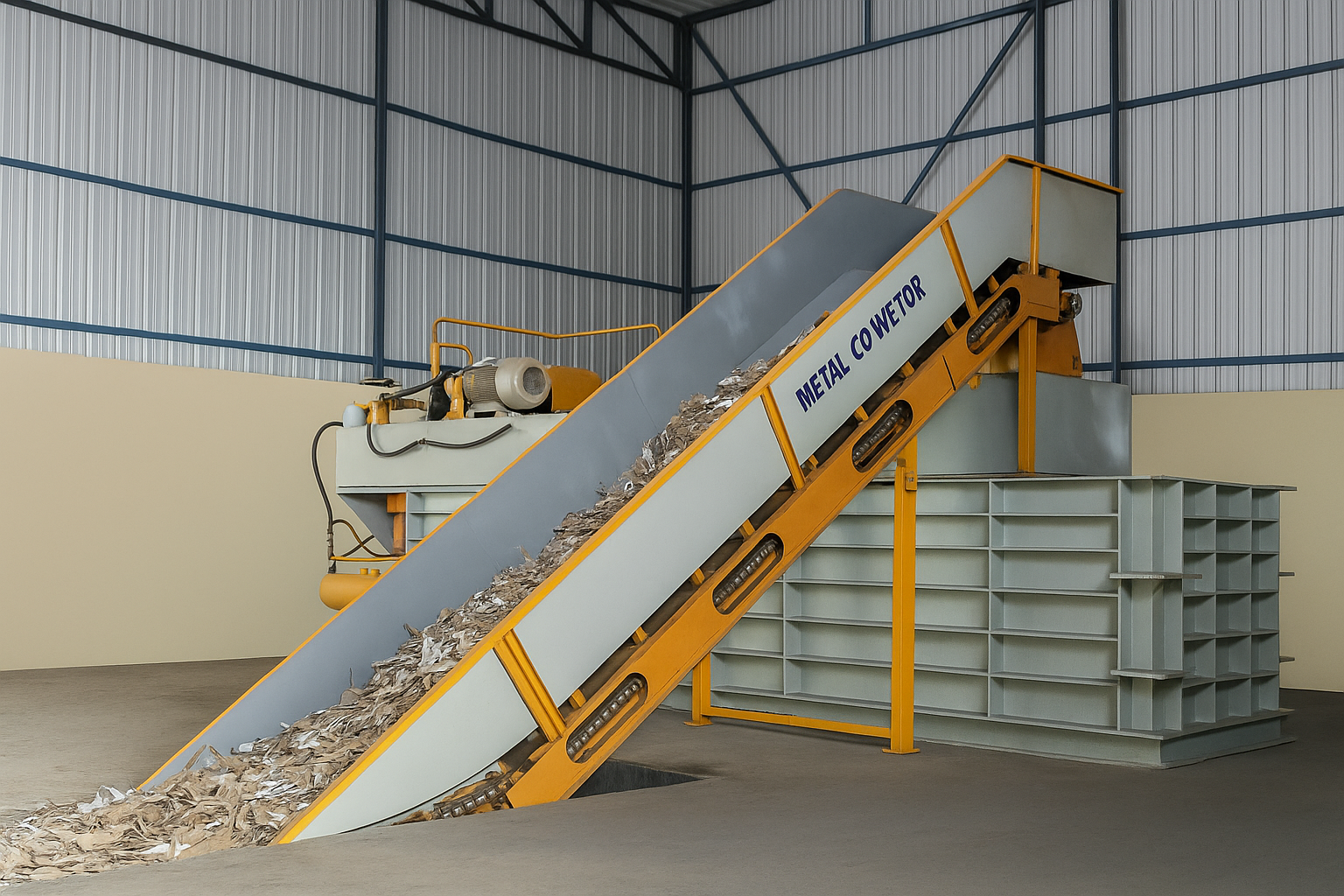

- Conveyor-Fed Compact – Short conveyor for continuous loading from sorting lines or floor sweep.
- Perforator/Pre-Press Add-On – Better pre-compaction for fluffy OCC and printed sheets.
Key Features
- Space-saving footprint with low installation height and front-side maintenance access.
- Hydraulic power pack with quality valves, pressure relief and oil filtration for long life.
- Adjustable bale length and density; bale counter and cycle time display.
- Interlocked doors, E-stop, light curtains (optional) and overload protection.
- Energy-efficient cycles with automatic return stroke and standby mode.
- Options: conveyor, bin tipper, strap roll stand, anti-jam logic, and caster base.
Applications
- OCC cartons, corrugated trimmings, kraft and duplex board offcuts.
- Printed sheets, newspaper, magazine bundles and mixed office paper.
- Retail/DC backrooms consolidating packaging waste for rebates.
- Small MRFs and scrap dealers needing faster throughput than a vertical baler.
Why Choose a Small Horizontal Baler
- Higher throughput than vertical balers while keeping CAPEX low vs. fully automatic lines.
- Denser, uniform bales improve transport efficiency and resale value.
- Lower labour per ton with conveyor feed and quick tie-off workflow.
- Safer operation with guarded inlets and interlocks; neat housekeeping.
Selection Tips
- Map daily volume (kg) and peak inflow to choose ram force and chamber size appropriately.
- Plan bale dimensions to match truck height and storage racks; confirm strap type & count.
- Consider conveyor or bin lifter if loading is frequent to cut operator effort and time.
- Specify electricals, oil grade, and safety add-ons per site standards before ordering.
- Keep essential spares (seals, filters, strap rolls) on hand; schedule quarterly service.
FAQs – Small Waste Paper Horizontal Baler
1. How is a small horizontal different from a vertical baler?
+
It offers faster cycles, easier feeding (hopper/conveyor) and longer bales that stack better. CAPEX is higher than a vertical but well below a fully automatic line.
2. Can it handle mixed paper with plastic liners or tape?
+
Yes, but purity improves bale value. Light contamination is acceptable; avoid metals and liquids. A sorting step before baling is recommended.
3. What tie system is used?
+
Manual or semi-automatic steel/plastic strapping, typically 2–4 ties per bale depending on bale height and density targets.
4. What site utilities are needed?
+
Three-phase power and a level floor. No compressed air is needed unless specified for accessories. Allow space for bale ejection and strap roll stand.
5. How do I estimate capacity?
+
Use average cycle time × bale weight. Cycle time depends on ram stroke and pressure; consult the spec sheet for realistic throughput at your feed density.
